Suspension Type 06

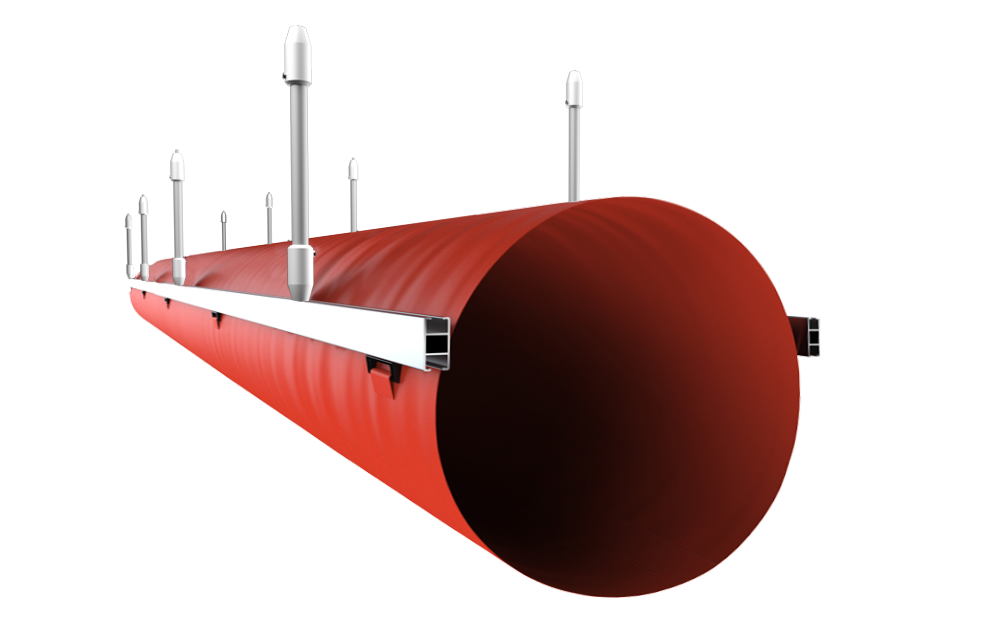

Type 06
Designed to suspend larger diameter ductsType 06 double H-rail suspension is an elegant way to suspend larger diameter ducts. The H-rail, so named because it looks like an H in the cross section, is made from anodized aluminum, making it an excellent choice for corrosive environments. Two H-rails are hung using field adjustable anodized aluminum rods that lock into the top channel of the rails. The duct is then suspended from the rails with sliders, at the 3 and 9 o’clock positions, that slide down the bottom channel of the H-rails. The length of the duct straps that hold the sliders can be manufactured to specification.

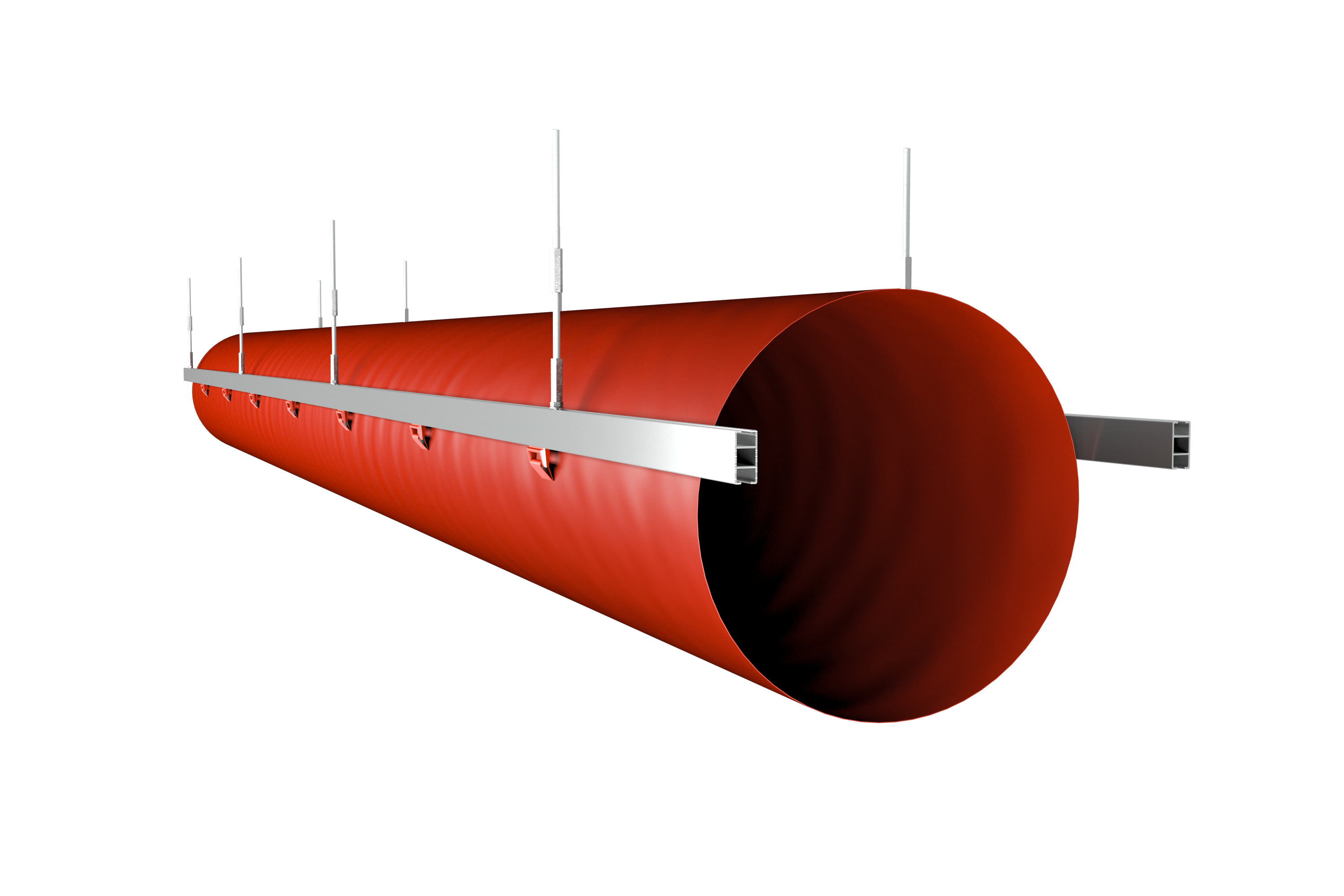

Type 06 HE
Suspension method designed for harsh environmentsType 06 HE is the new suspension system, dedicated for use in harsh/corrosive environments and are abbreviated by “HE” which means “Harsh Environment”. The solution is based on M8 threaded rods which are connected to the aluminum H-rails with a special connector. The key is that all the critical elements in the HE suspension system are hot-dip galvanized ensuring a high level of protection against corrosion. Critical elements mean load-bearing fixings, fasteners, and threaded parts, i.e., all parts that are holding the weight of the air dispersion system.
