Suspension Type 05
Type 05
Elegantly fixed all-aluminum suspension methodType 05 is an elegantly fixed all-aluminum suspension method. The H-rail, so named because it looks like a H in the cross section, is made of anodized aluminum, making it an excellent choice for corrosive environments. The H-rail is hung using field adjustable anodized aluminum rods that lock into the top channel of the rail. The duct is then suspended from the rail. The duct has sliders at the 12 o’clock position that slide down the bottom channel in the H-rail. The length of the duct straps that hold the sliders can be manufactured to specification. Type 5 suspension is available with All-In-One.

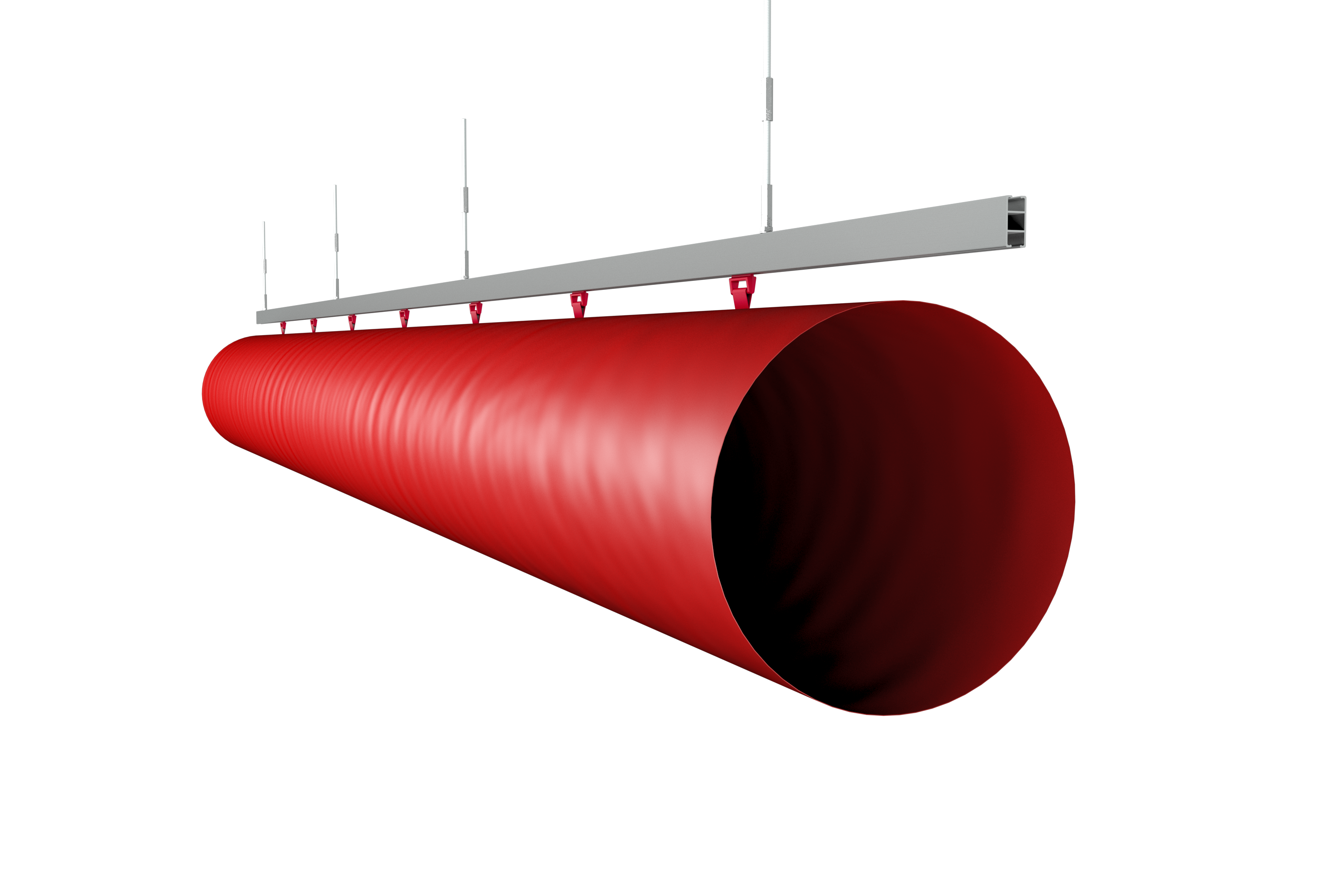

Type 05 HE
Suspension method designed for harsh environmentsType 05 HE is the new suspension system, dedicated for use in harsh/corrosive environments and are abbreviated by “HE” which means “Harsh Environment”. The solution is based on M8 threaded rods which are connected to the aluminum H-rails with a special connector. The key is that all the critical elements in the HE suspension system are hot-dip galvanized ensuring a high level of protection against corrosion. Critical elements mean load-bearing fixings, fasteners, and threaded parts, i.e., all parts that are holding the weight of the air dispersion system.
