Suspension Type 07
Type 07
Features keter type bulb edgeType 07 H-Rail suspension is an elegantly fixed all-aluminum suspension system. The H-Rail, so named because it looks like an H in the cross section, is made from anodized aluminum, making it an excellent choice for corrosive environments. The H-Rail is hung using field-adjustable anodized aluminum rods that lock into the top channel of the rail. The duct is then suspended from the rail.

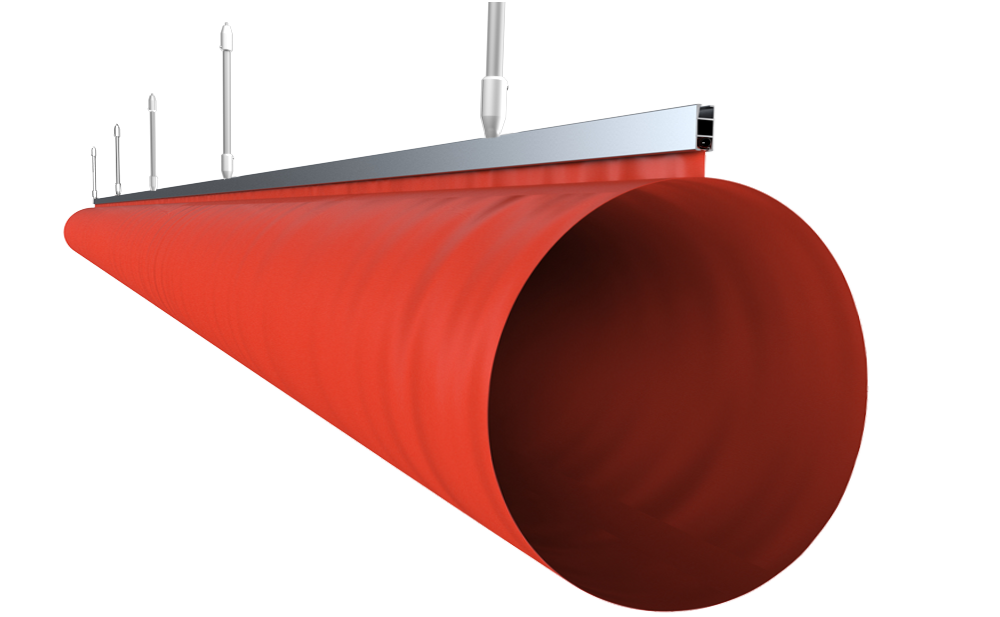

Type 07 suspension packages utilize the FabricAir RapidSlider for hanging the duct. The RapidSlider allows for easy installation into the rails and a seamless look for any diameter. The specially designed feeder makes it easy to slide any length of duct continuously through the suspension rail with little or no additional labor or equipment. The end result is a seamless look between the duct and the rail and fewer wrinkles in the installed duct.

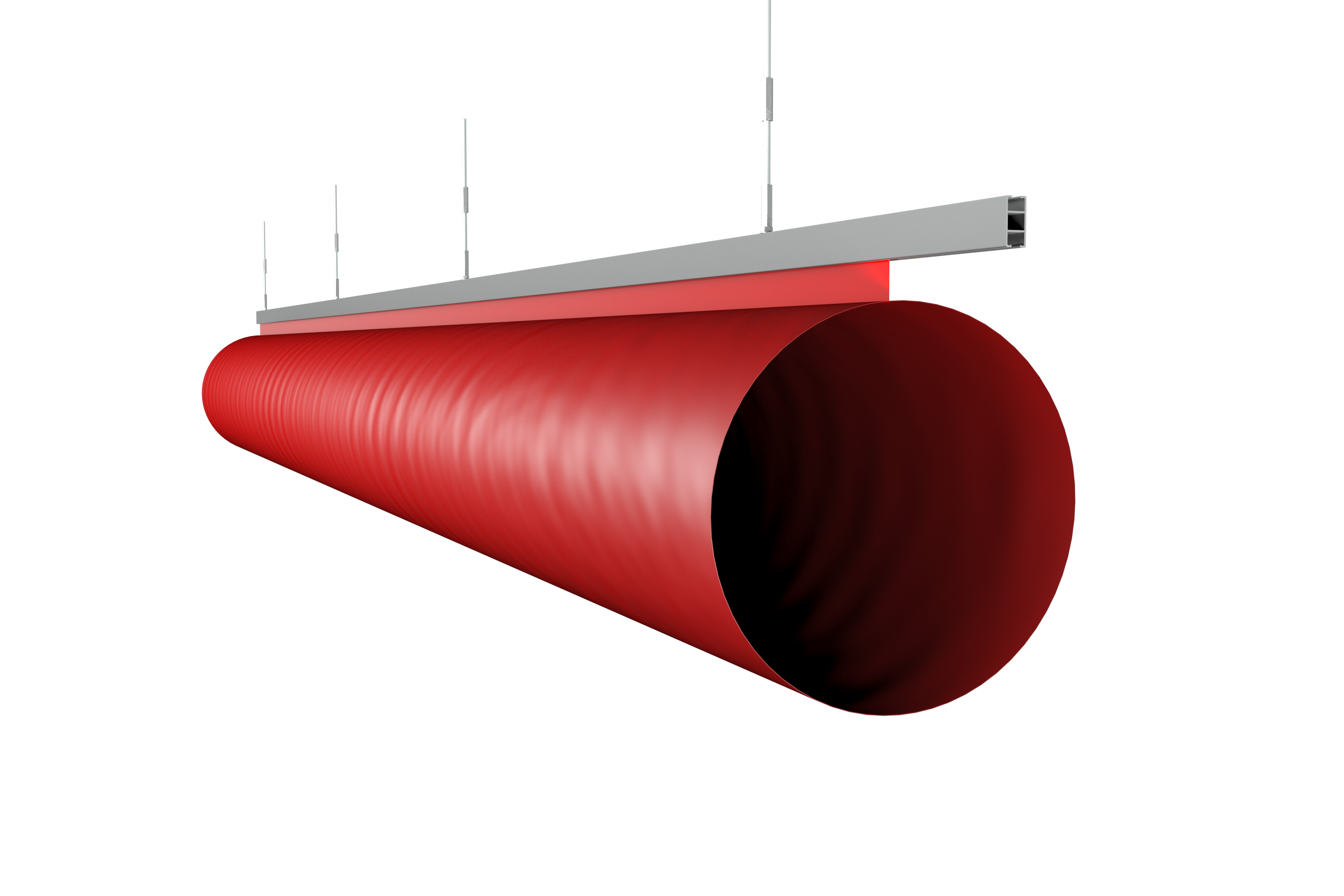

Type 07 HE
Suspension method desgined for harsh environmentsType 07 HE is the new suspension system, dedicated for use in harsh/corrosive environments and are abbreviated by “HE” which means “Harsh Environment”. The solution is based on M8 threaded rods which are connected to the aluminum H-rails with a special connector. The key is that all the critical elements in the HE suspension system are hot-dip galvanized ensuring a high level of protection against corrosion. Critical elements mean load-bearing fixings, fasteners, and threaded parts, i.e., all parts that are holding the weight of the air dispersion system.
