Suspension Type 06

Type 06 double H-Rail suspension is an elegant way to suspend larger diameter ducts. The H-Rail, so named because it looks like an H in the cross section, is made from anodized aluminum, making it an excellent choice for corrosive environments such as indoor swimming pools. Two H-Rails are hung using field-adjustable anodized aluminum rods that lock into the top channel of the rails. The duct is then suspended from the rails at the 3 and 9 o’clock positions, that slide into the bottom channel of the H-Rails.

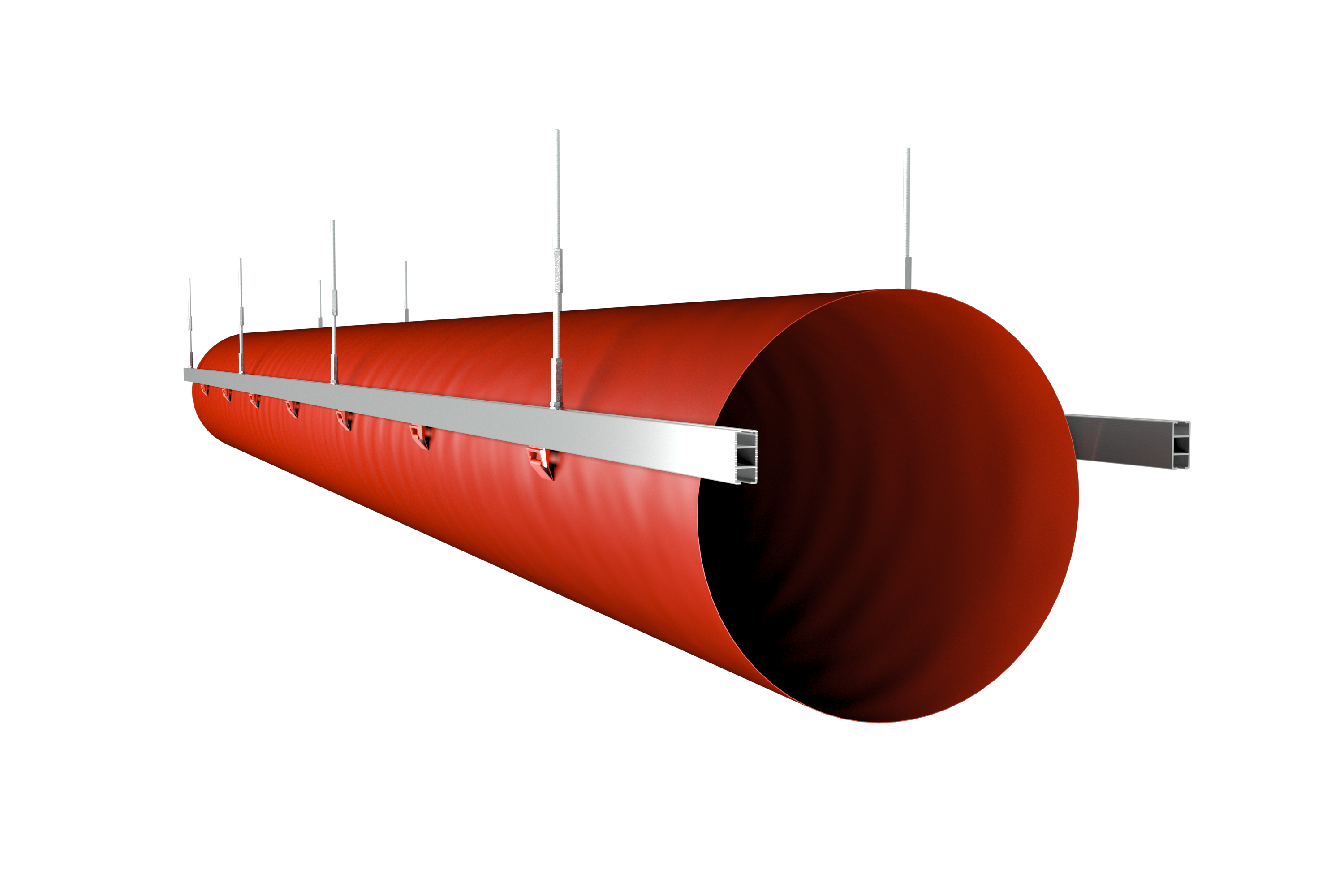

Type 06 HE is the new suspension system, dedicated for use in harsh/corrosive environments and are abbreviated by “HE” which means “Harsh Environment”. The solution is based on M8 threaded rods which are connected to the aluminum H-rails with a special connector. The key is that all the critical elements in the HE suspension system are hot-dip galvanized ensuring a high level of protection against corrosion. Critical elements mean load-bearing fixings, fasteners, and threaded parts, i.e., all parts that are holding the weight of the air dispersion system.
