Internal 360° Hoops

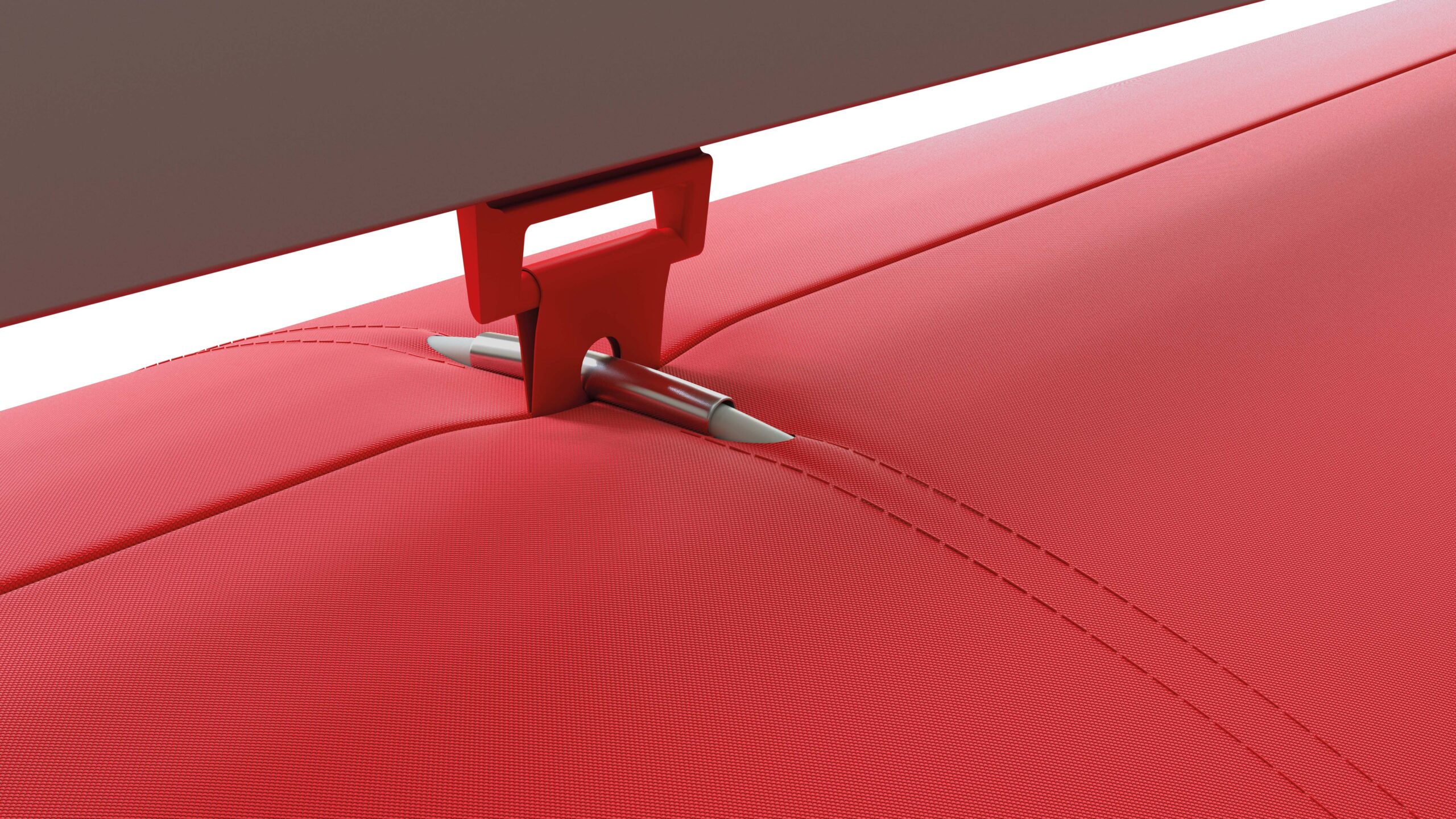

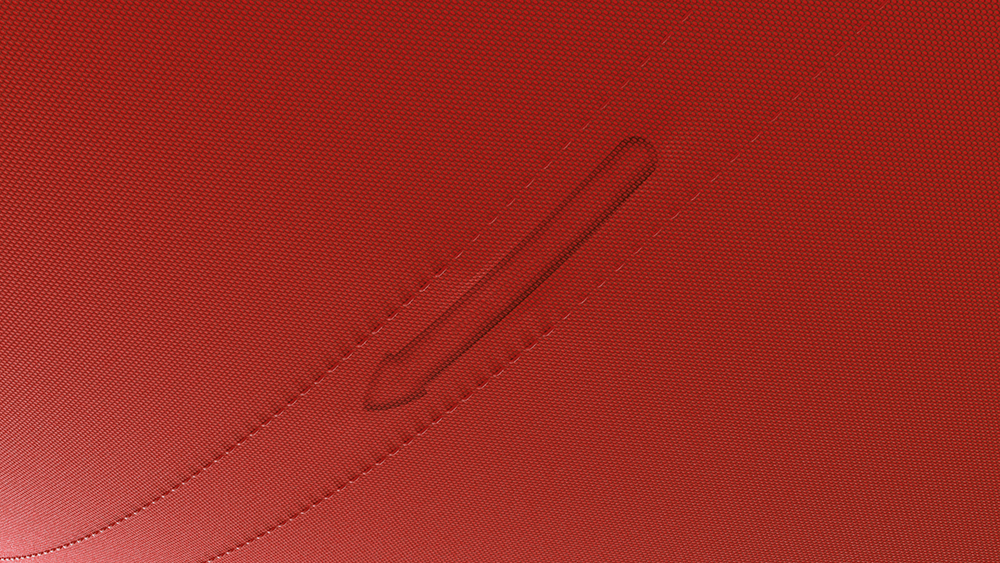

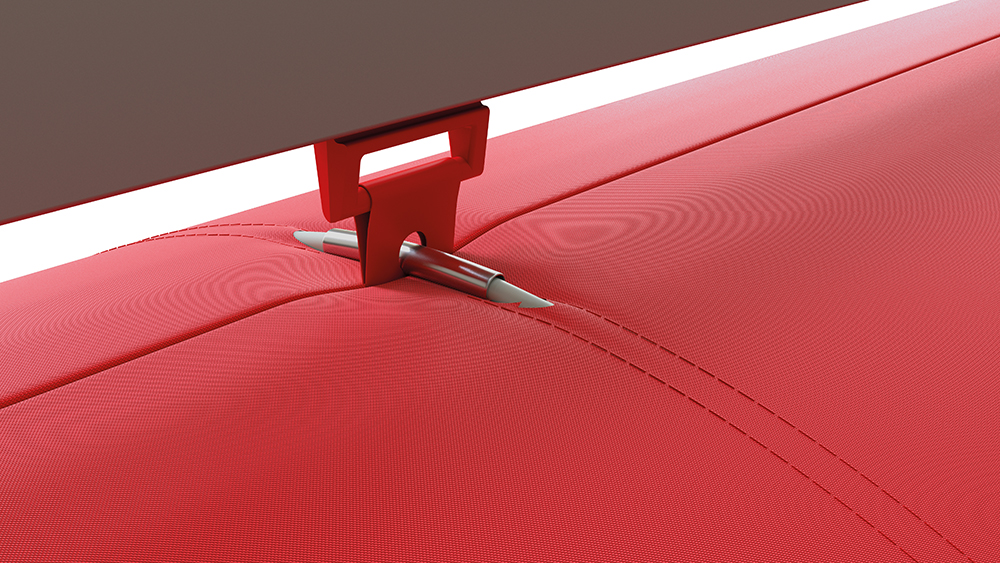

Internal 360° Hoops are mounted in sleeves on the inside of the ductwork, creating a closed circuit around the circumference. This ensures an aesthetically pleasing duct that is kept open if the airflow is turned off. The hoops are removable for easy laundry.

Pre-installed up to 660 mm

Internal 360° Hoops are available in duct systems from Ø200 mm and up. The hoops come pre-installed from the factory on ducts up to Ø660 mm. For diameters above Ø660 mm, the suspension fiberglass rods are added on site. Adding the hoops is an easy process, as they simply glide in place.

This animation shows you how to easily install the Internal 360° Hoops shape retention option. The hoops are factory installed up to Ø660 mm. The Internal 360° Hoops ensures 360° support regardless of the duct diameter. It is easy and quick to install and removal of the hoops and requires no special tools. The fiberglass rods are simply inserted from the outside of the duct. The shape retention solution keeps the duct visually appealing even when the airflow is off.

Wide assortment of duct profiles available

FabricAir ducting comes in a wide assortment of duct profiles in addition to the round and D-shaped favorites. Our engineers design air dispersion systems that ensure the best possible fit for each individual application. Influencing factors, like room dimensions, air volume and aesthetics and purpose of the solution are thoroughly evaluated to select the appropriate duct type and profile. FabricAir engineers call on a proven almost 50-year track record and accumulated know-how in air engineering to create the ideal solution.
