Combi 85

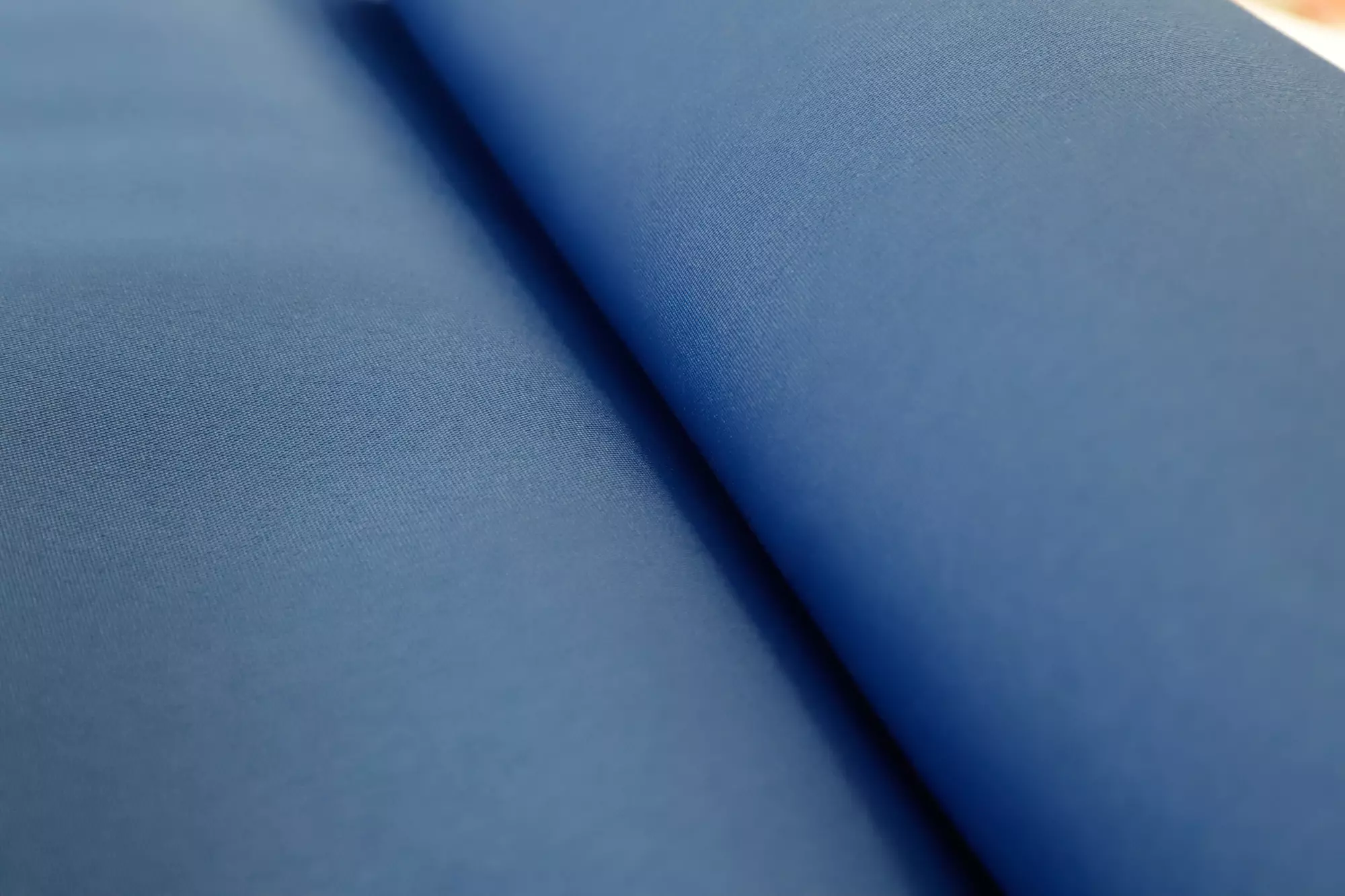

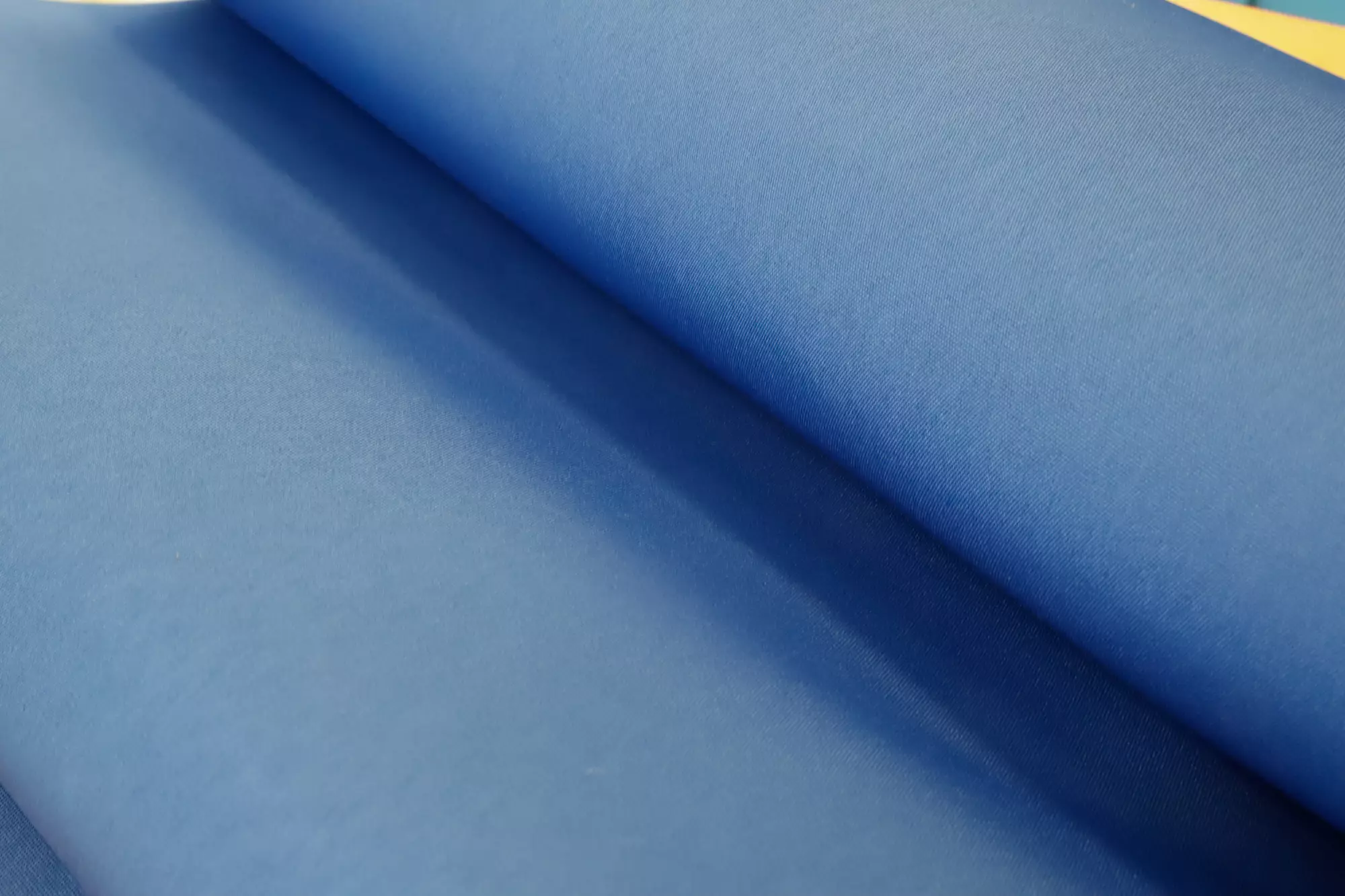

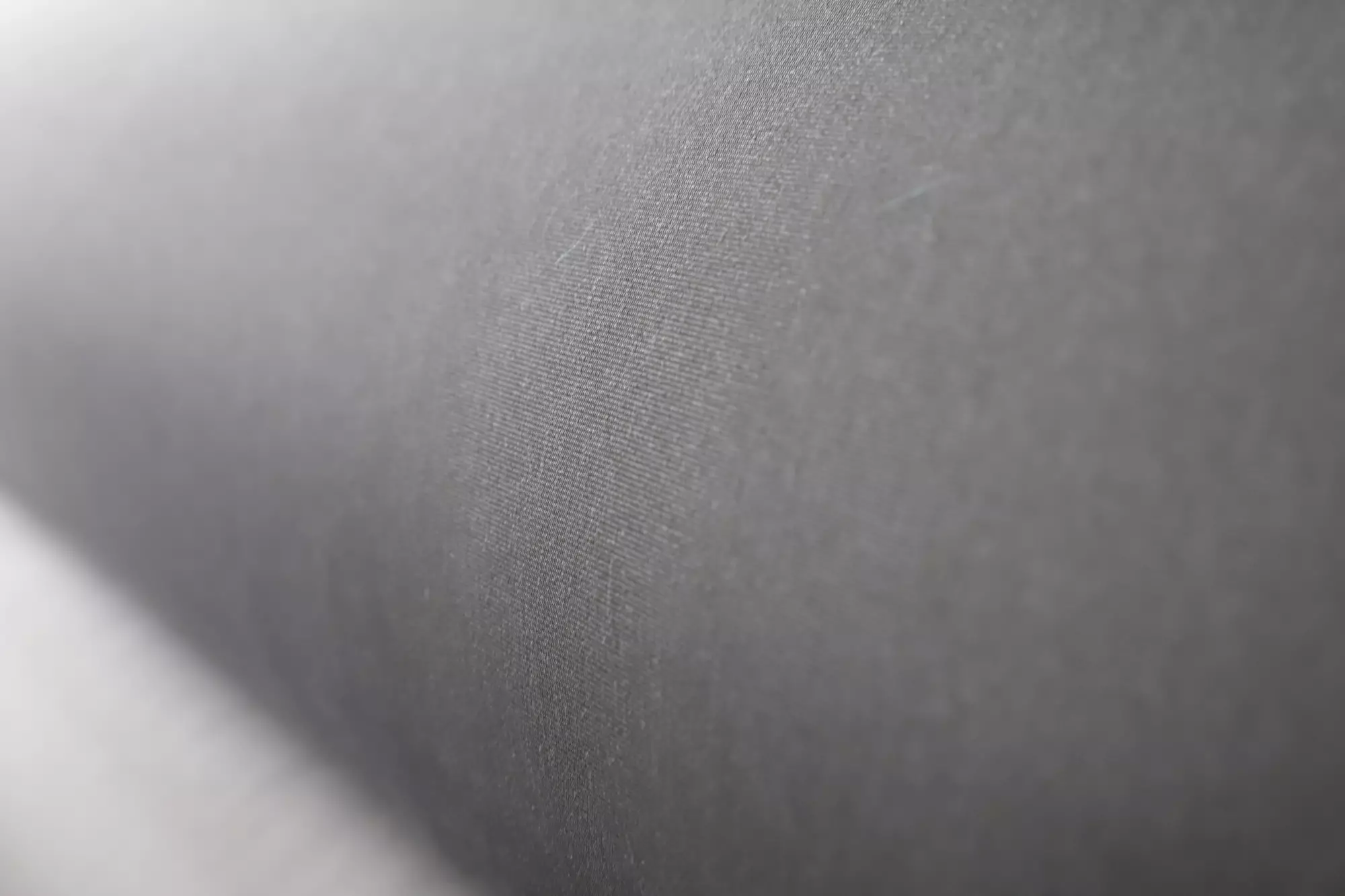

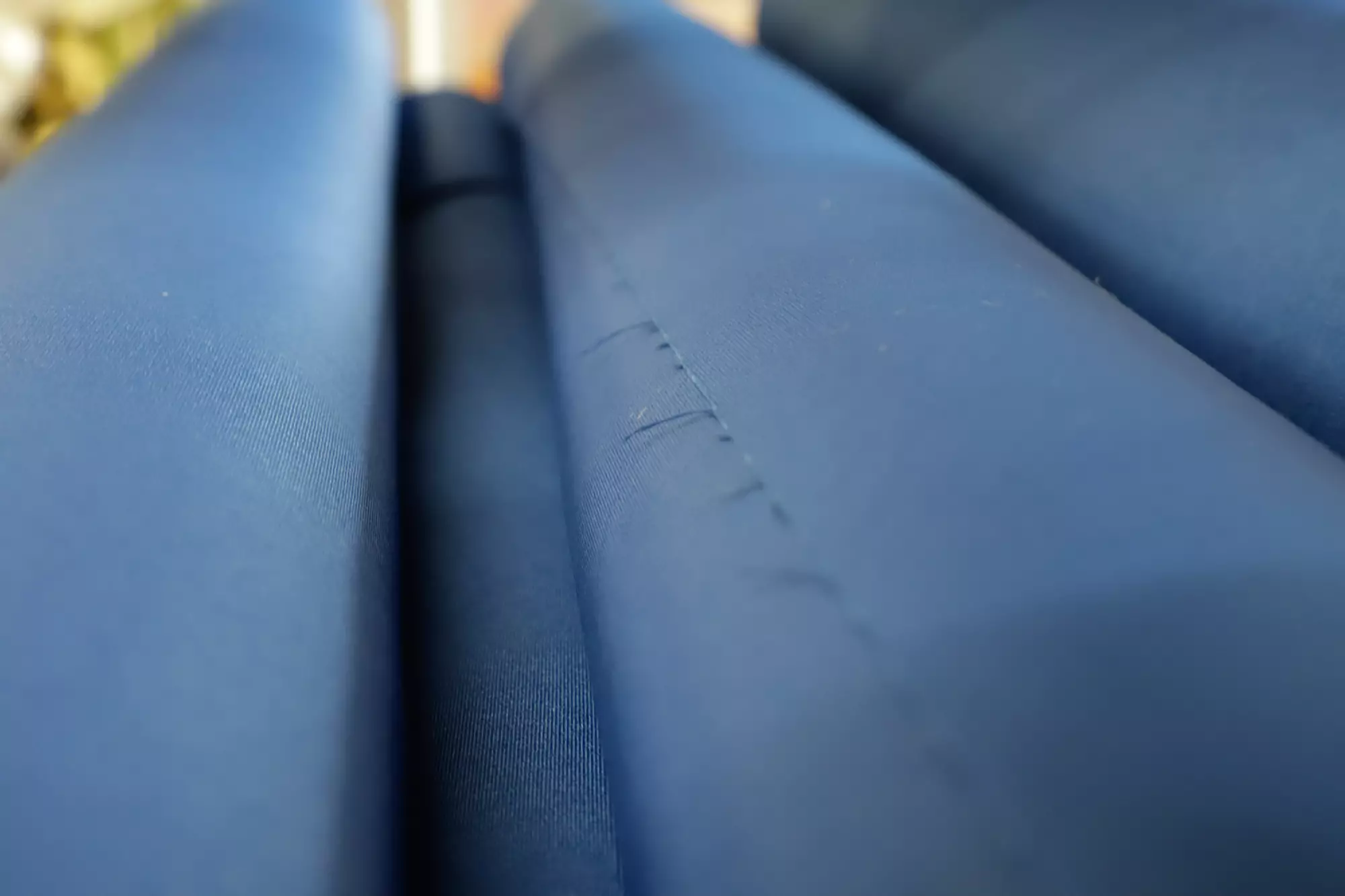

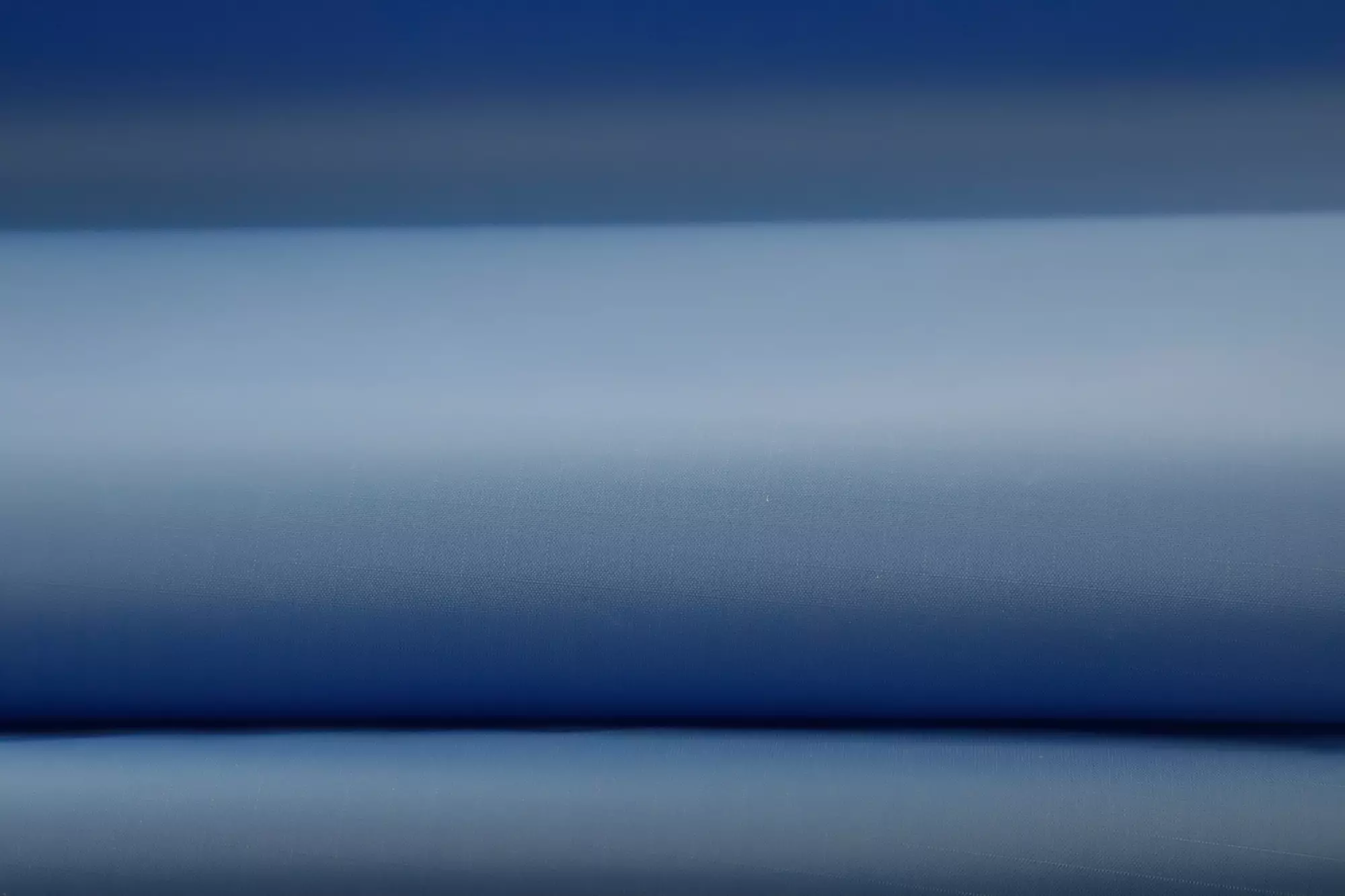

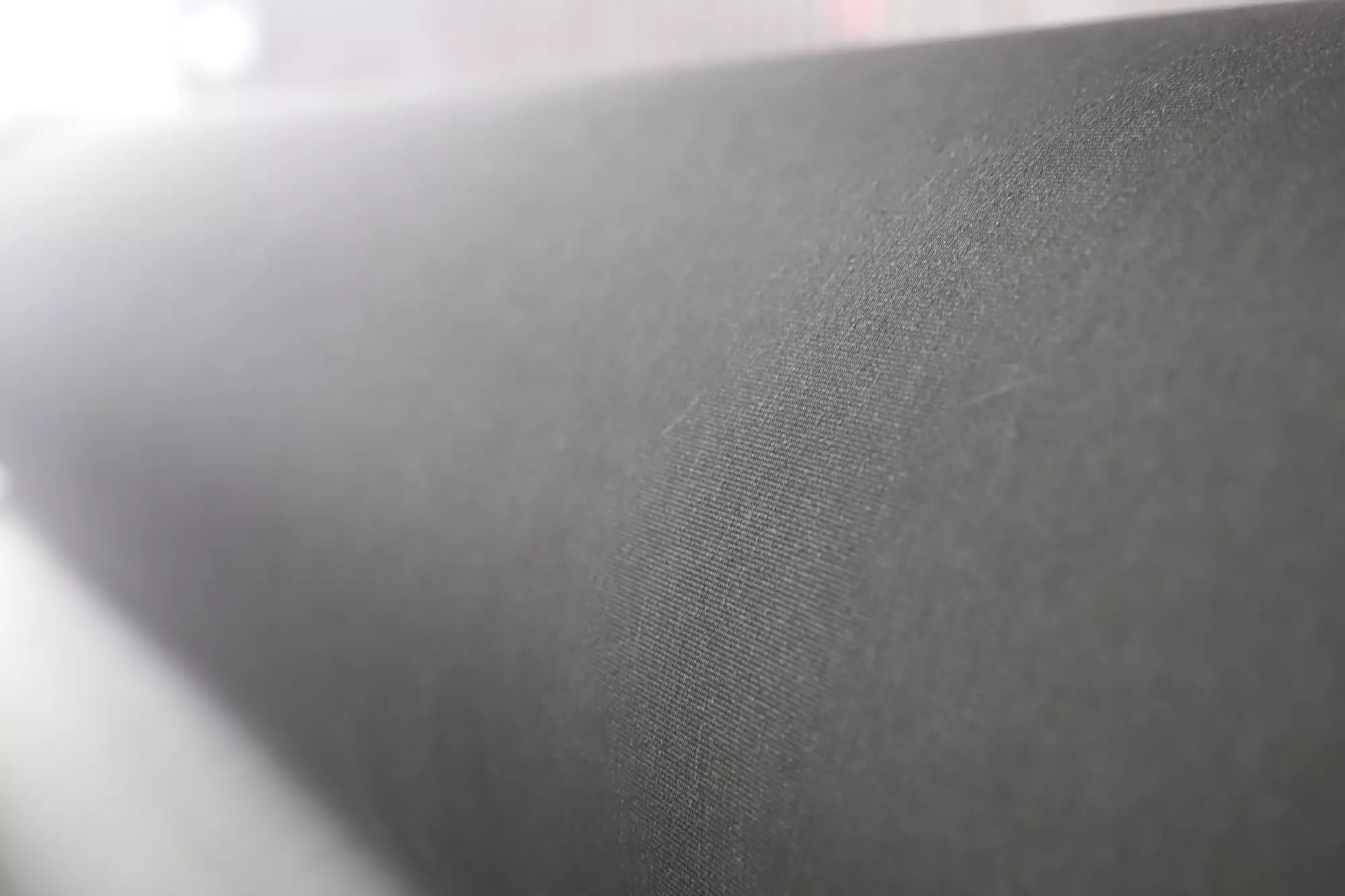

FabricAir® Combi 85 is a non-permeable, flame-retardant, Oeko-Tex 100 certified fabric. It is a strong and durable fabric, machine washable and retains its dimensions after washing (max. 0.5% shrinkage).

  • Non-permeable
  • 10 year warranty
  • Flame retardant
  • Washable

Standard colors

All our fabrics come in standard colors. Choose the one that would either blend with your interior or could become a design statement.

White 3000

Blue 3001

Orange 3002

Gray 3003

Black 3004

Red 3005

Light gray 3006

Green 3007

Tan 3008

Available colors and patterns

Your fabric ducts can look the way you want them. Below are the options that can be adapted to your specific needs.

  • Coloring by Surface Print
  • Seamless pattern
  • Artwork, print
  • Lettering, print
  • Logos, print

COMBI 85 data sheet

Fabric type
Polyester
Weight
300 g/m²
EN ISO 12127:1997
Thickness
0.45 mm
EN ISO 5084:1996
Permeability
0 m³/m²/h at 120 Pa
EN ISO 9237:1995
Strength - Wrap
2700 N
EN ISO 13934-1
Strength - Weft
900 N
EN ISO 13934-1
Shrinkage
0,5 % Max.
EN ISO 5077
Heat resistance - continuous
from -40 to +140 °C
Heat resistance - softening
+240°C
EN 13501-1:
B-s1, d0
EN 13501-1
GB 8624:
B-s1, d0, t1
GB 8624
UL 723:
Yes
UL 723
ULC S102.2:
Yes
DS 428
Yes
Fire retardant:
M1
NF P 92-507
Cleanrooms:
Class 3
EN ISO 14644-1
UL 2518:
Yes
UL 2518
OEKO-TEX®:
Yes
OEKO-TEX® Standard 100
All-in-One:
Yes
360° hoops:
Yes
Disclaimer

FabricAir® believes that all data, statements, technical information, etc. (certificates), listed in this Technical Data Sheet regarding the product and the use of the product are accurate and reliable. However, the product will only be covered by FabricAir®’s guarantees or warranty if the final use for the product has been approved by FabricAir® in writing. No representative is authorized to approve the final use of the product on behalf of FabricAir®.
